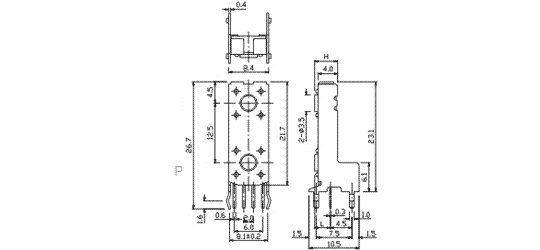

MODEL NO. | H | Knob(L) | MODEL NO. | H | Knob(L) | |
TC-00100-02 | 4.80 | 3.15 | TC-00100(E)-02 | 7.50 | 5.85 | |
TC-00100(A)-02 | 5.50 | 3.85 | TC-00100(F)-02 | 8.50 | 6.85 | |
TC-00100(B)-02 | 7.80 | 6.15 | TC-00100(G)-02 | 12.5 | 11.35 | |
TC-00100(C)-02 | 10.00 | 8.35 | TC-00100(H)-02 | 14.00 | 12.35 | |
TC-00100(D)-02 | 13.5 | 11.85 |
